12V 30/40 AMP SPDT Automotive Relay with Wires & Harness Socket (5 pack) US SHIP

Template By Froo!
12V 30/40 AMP SPDT Automotive Relay with Wires & Harness Socket (5 pack) US SHIP

ABSOLUTE USA 12V 30/40 AMP SPDT AUTOMOTIVE BOSCH / TYCO STYLE 5 PIN RELAY WITH WIRES & HARNESS SOCKET (5 PACK)

RLS125-5 + SRS103-5

PRODUCT FEATURES:

*             OUTLINE DIMENSIONS: 28.0*28.0*25.0MM

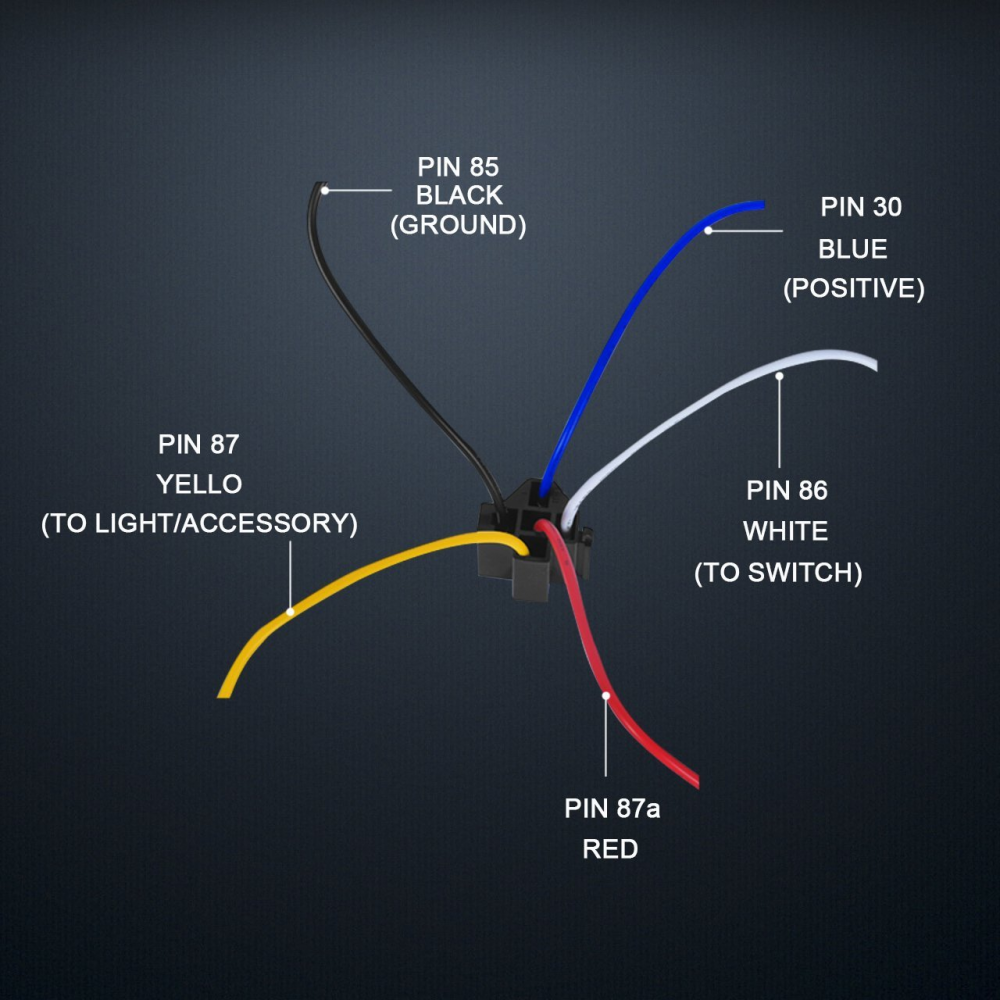

*         RELAY SOCKETS ARE 5 WIRES. YELLOW (PIN87 LIGHT/ACCESSORY), RED(PIN87A), WHITE (PIN86 SWITCH), BLUE (PIN30 POSITIVE), BLACK (PIN85 GROUND)
*         40A NO/30A NC HIGH SWITCHING CAPABILITY AUTO RELAY-HARNESS
*           INCLUDING 5 PRONG RELAYS, 5 PRONG SOCKETS & WIRES. RELAYS AND SOCKETS ARE SEPARATED FOR VARIOUS USAGES. ENGLISH MANUAL ATTACHED
*         FOR AUTOMOTIVE ELECTRICAL APPLIANCES SUCH AS LIGHTS, AIR CONDITIONER, WINDSHIELD WIPER AND OTHER, TURN-ON/OFF ALMOST ANY DEVICE;

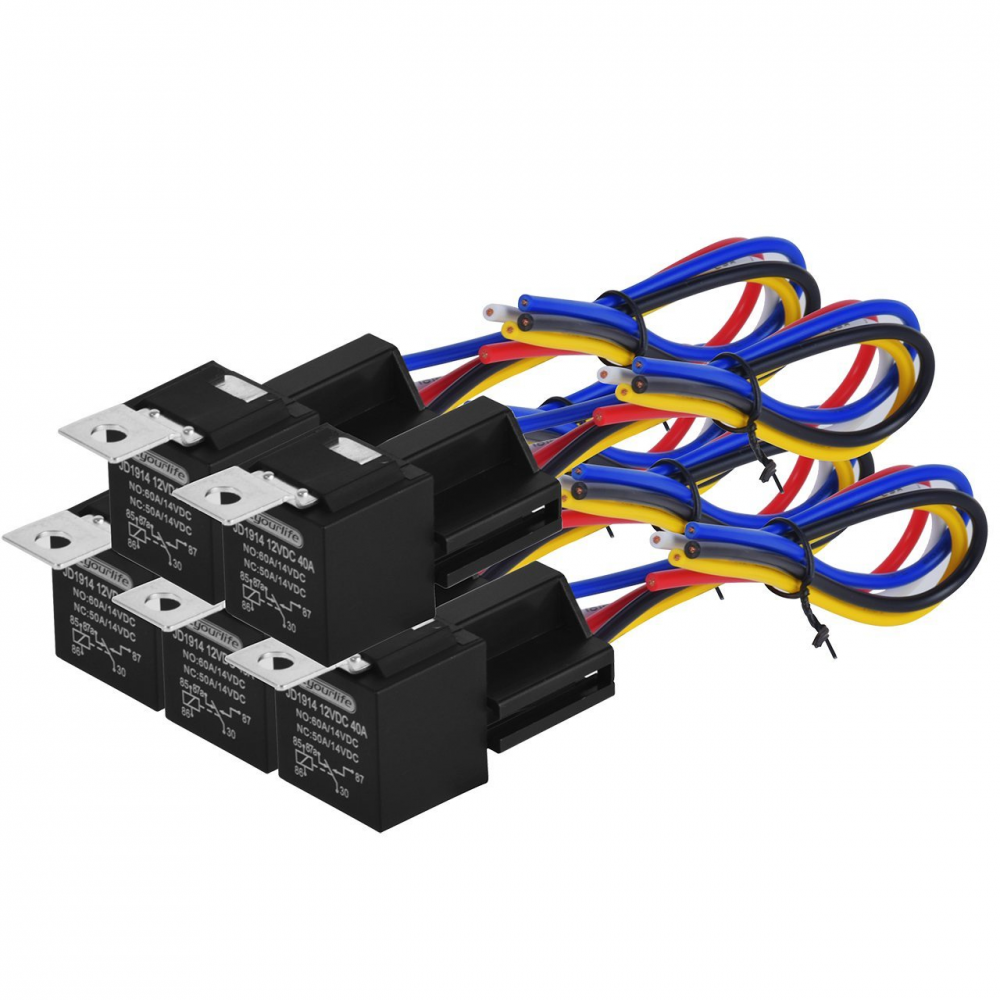

*         12V 5 PRONG RELAYS WITH 5 PRONG SOCKETS WIRES(PIGTAILS)
*           PACKAGE INCLUDING 5 RELAYS AND 5 SOCKETS WITH WIRES FOR CAR ELECTRONIC APPLICATIONS TO TURN-ON/OFF ALMOST ANY DEVICE
*          HEAVY-DUTY IMPACT MOLDED RELAY SOCKET WITH 5 WIRES. YELLOW (COMMON), RED (NORMALLY CLOSED), AND BLUE (NORMALLY OPEN)
*        40A/30A HIGH SWITCHING CAPABILITY
*         GENERAL PURPOSE RELAY
*           AUTOMOTIVE BOSCH / TYCO STYLE RELAY
*          SINGLE POLE DOUBLE THROW
*          5 PIN
*         30/40 AMPS
*         12V DC
*          USEFUL FOR INTEGRATING YOUR VEHICLES ALARM SYSTEM
*           CONTROL POWER WINDOWS, DOOR LOCKS, LIGHT, ETC. FROM YOUR SECURITY SYSTEM
*           CAN BE USED WITH THE ABSOLUTE SRS105 0R SRS103 RELAY SOCKET
*
* SPECIFICATION:
*           NO 40A 14VDC
*           NC 30A 14VDC
*           MAX OPERATING CURRENT: 40A
*           MAX OPERATING VOLTAGE: 27V
*           INSULATION RESISTANCE: 100MΩ
*           DIELECTRIC STRENGTH (COIL AND CONTACT): 500VAC
*           AMBIENT TEMPERATURE: -40°C~+85°C
*           OPERATE/RELEASE TIME: 10MS/10MS
*           MECHANICAL LIFE: 1000000MIN
*           ELECTRICAL LIFE: 100000MIN
